STOCK ITEM
Metal

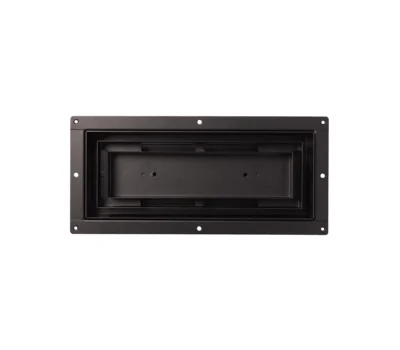

Floor Vent Flush Double Channel [Luxe+]
Specifications and Features

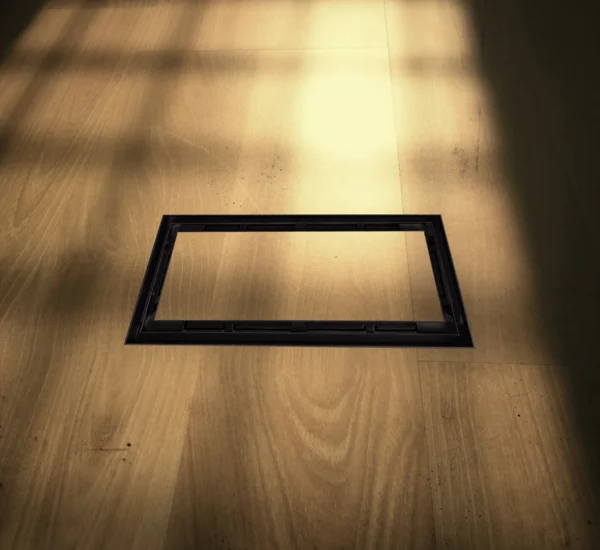

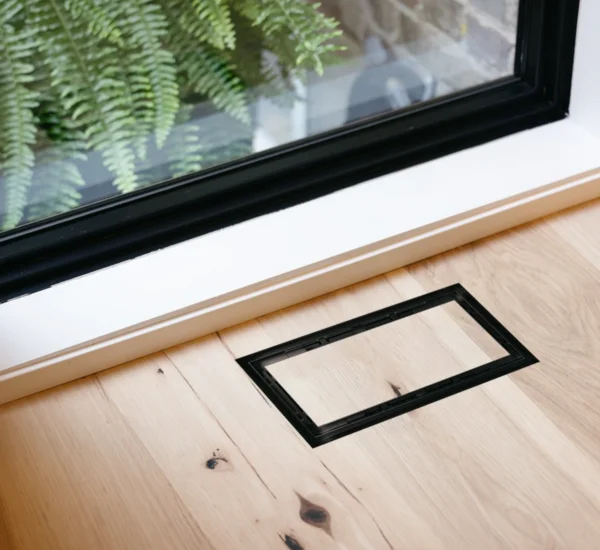

Equipped with a double rectangular air channel, this vent delivers a 50%-60% increase in open area compared to the standard Flush Floor Vent [Luxe]. Once installed, only the sleek air channel is visible.
- Installation: Must be mounted at the sub-floor level before surface material installation.
- Airflow: Full control with a sliding tray to adjust dampers.
- Child & Pet Proof: Flat, grille-free design prevents accidents and captures small items.

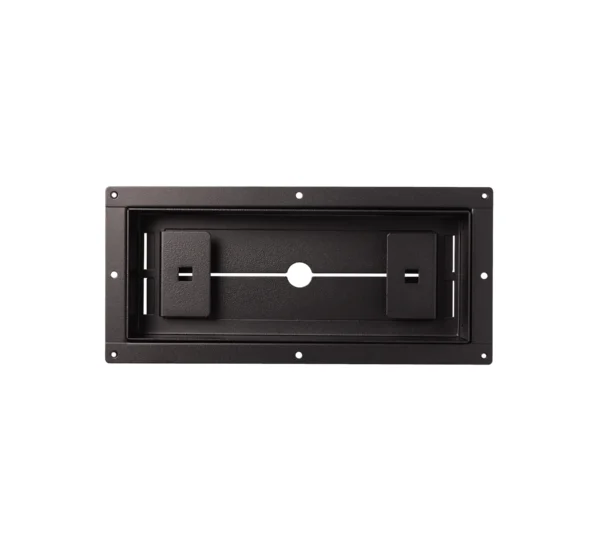

- Easy to Clean: Slide-out tray enables quick duct cleaning.
- Increased Air Flow: Provides 50%-60% more airflow compared to single-channel models (size dependent). Examples:
4"x10": 50%-60% more open area than the standard model.
6"x12": 50%-60% more open area than the standard model.
6"x14": 50%-60% more open area than the standard model.
See detailed dimensions here.
| Size | Open Free Area | Detailed Specs |
|---|---|---|
| 4"x10" | 14.8 sq.in. | CFM, SP |
| 6"x12" | 21.0 sq.in. | CFM, SP |
| 6"x14" | 24.3 sq.in. | CFM, SP |
See install guide here..
